Introduction

GerbView is an advanced yet easy-to-use PCB file viewer, printer, and converter application designed for Windows systems. The tool supports viewing, printing, and annotating multiple formats including Gerber, ODB++, Excellon, HPGL/2, and Adobe PDF, with powerful conversion capabilities to transform files into common formats like DXF, DWF, PDF, SVG, and TIFF. Core features include: PDF-to-CAD conversion, workspace and annotation management, advanced measurement and analysis tools (distance/area/perimeter), support for Gerber X2/X3 standards (component and net information), and multi-layer merging to generate multi-page PDFs or multi-layer DXF/DWF files. Offers a 30-day free trial, suitable for PCB manufacturing review, file format conversion, design collaboration, and production preparation scenarios.

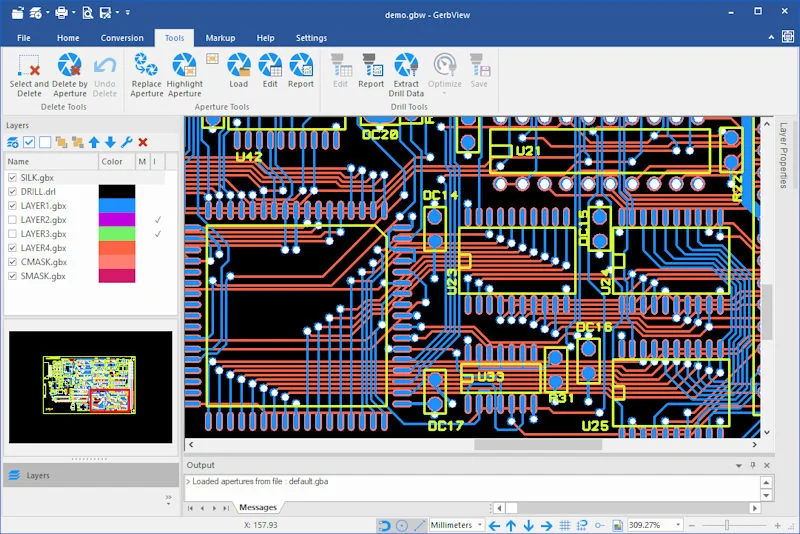

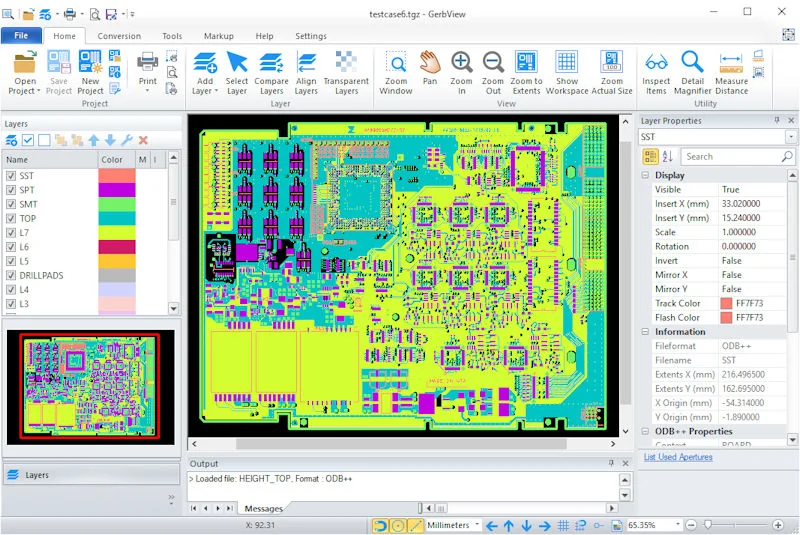

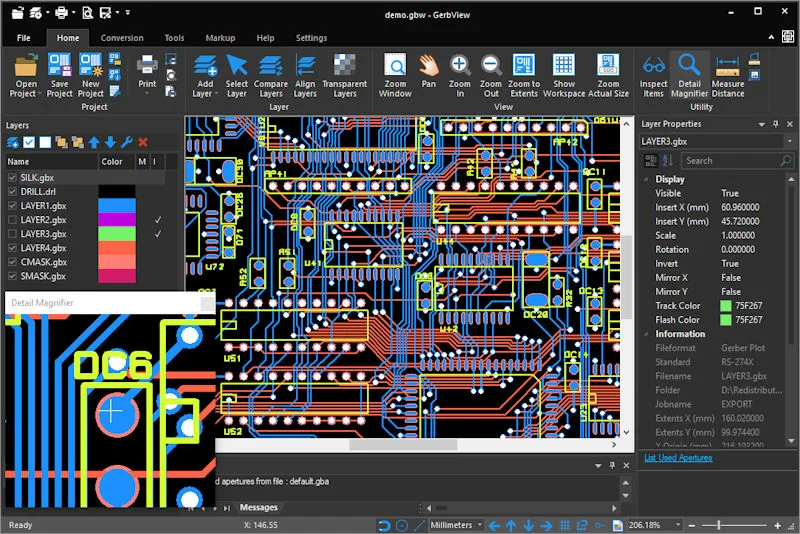

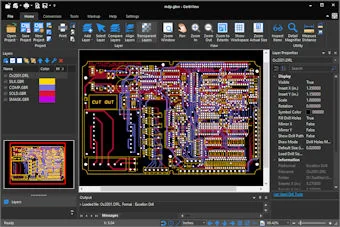

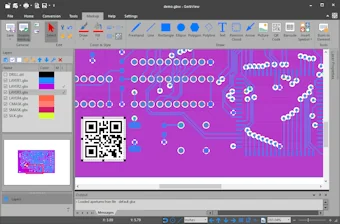

Screenshots

Features

Supports Gerber/ODB++/Excellon/HPGL-2/PDF formats
Powerful format conversion (DXF/DWF/PDF/SVG/TIFF)
PDF-to-CAD conversion (Gerber/DXF/HPGL-2)
Workspace and annotation management (text/barcode/arrows/images)
Advanced measurement and analysis tools (distance/area/perimeter)
Supports Gerber X2/X3 standards
