Keltri Reader

Introduction

Keltri Reader is a local PCB and schematic viewer for Windows that opens Altium, KiCad, Protel, PADS, Cadence OrCAD / Allegro, EAGLE, Mentor Xpedition, EasyEDA and vector PDF datasheets in one workspace, with no commercial CAD licence required. Its centrepiece is bidirectional instant cross-probing: select a component or net on the schematic and the matching location highlights on the PCB layout, which makes signal tracing and bring-up far easier. All CAD parsing, netlist extraction and rendering run inside the local process and design files are never uploaded to a server. It is an inspection and viewing tool, not an autorouter, layout editor or manufacturing DRC engine.

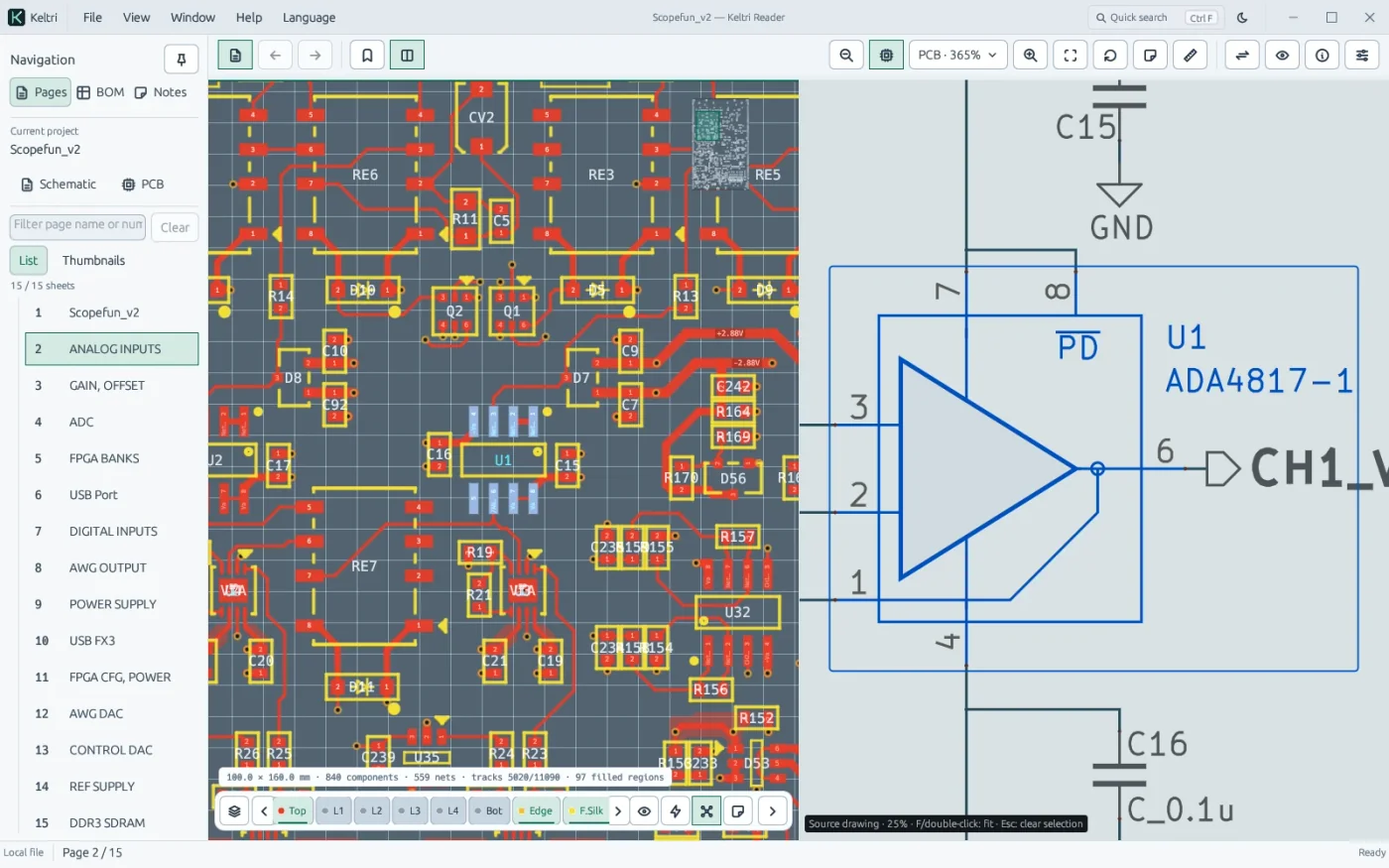

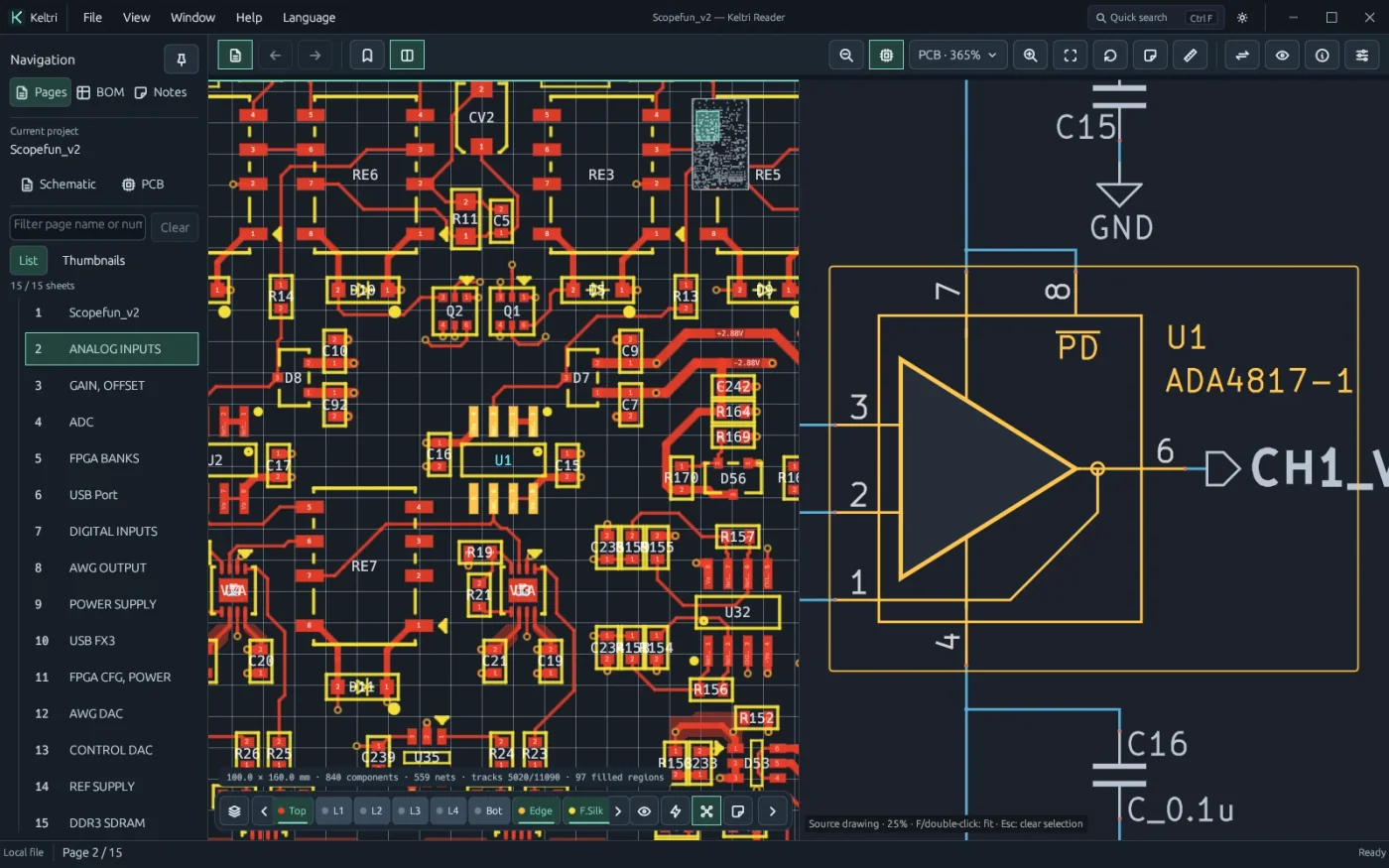

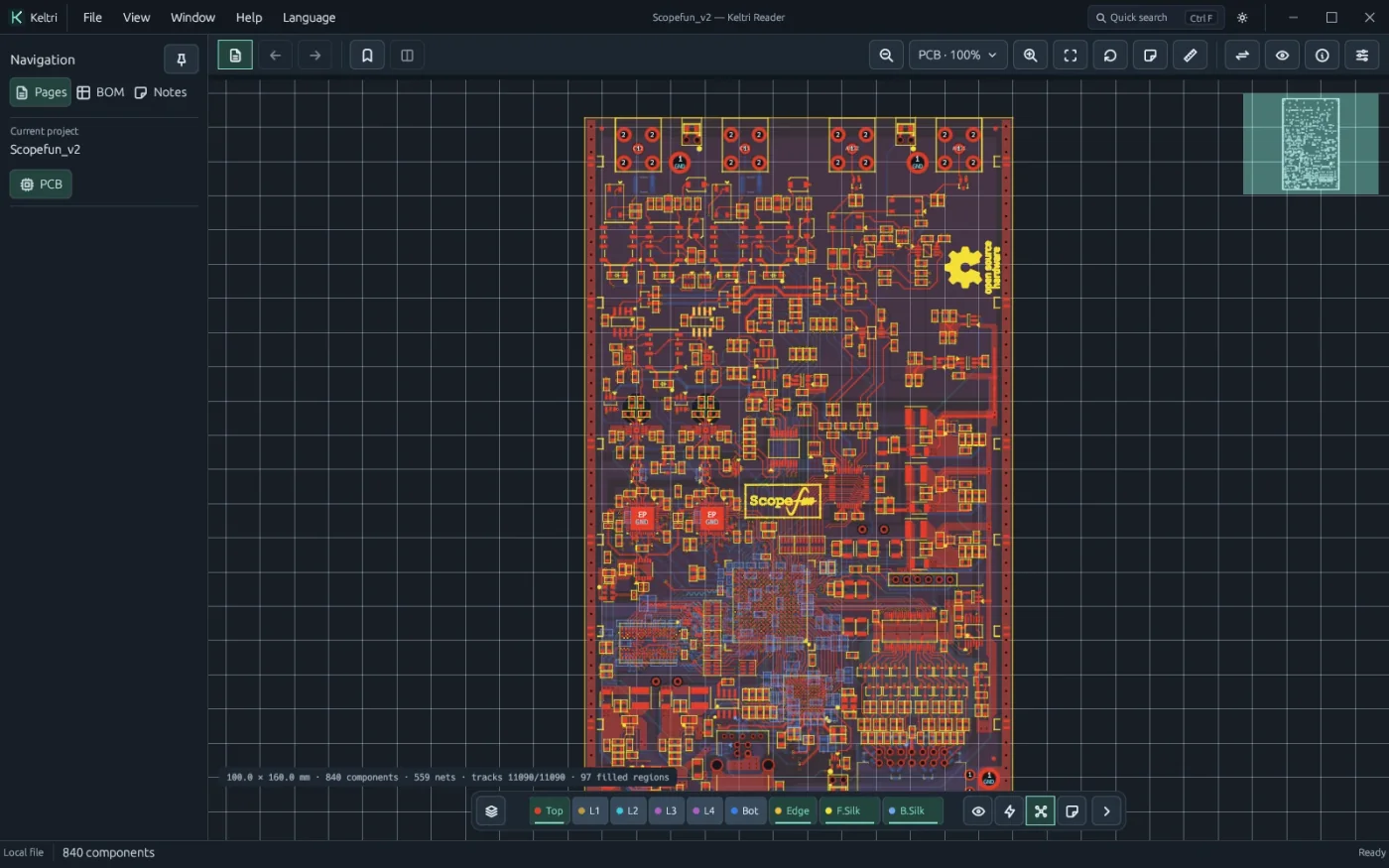

Screenshots

‹

›

Features

• Native reading of Altium, KiCad, Protel DDB, PADS, OrCAD / Allegro, EAGLE, Xpedition and EasyEDA
• Supports vector PDF datasheets and multi-sheet schematics
• Bidirectional instant cross-probing between schematic and PCB layout
• Opens project containers to bind PCB and schematic automatically, or drag and drop single files
• Parses locally; design files are never uploaded
• Reads legacy and modern EDA files without a commercial CAD licence
• Copper grid configuration and X-ray layer perspective
• Calibrated dark and light themes with undockable canvases for multi-head displays
• Ships an installer and a portable ZIP, both with SHA-256 digests
