Introduction

Layo1 PCB is a professional PCB design software from the Netherlands, combining ease of use with powerful manual control capabilities. It supports full manual control of trace patterns (down to the finest details), perfectly links schematic netlists while also supporting independent work without netlists. It supports drawing free mechanical graphics on separate layers. It uses an annual subscription licensing model, allowing download of the latest version during the license period. After expiration, projects can only be viewed, not edited or printed. Direct communication channels with developers are provided, and custom software adjustments are available based on user requirements.

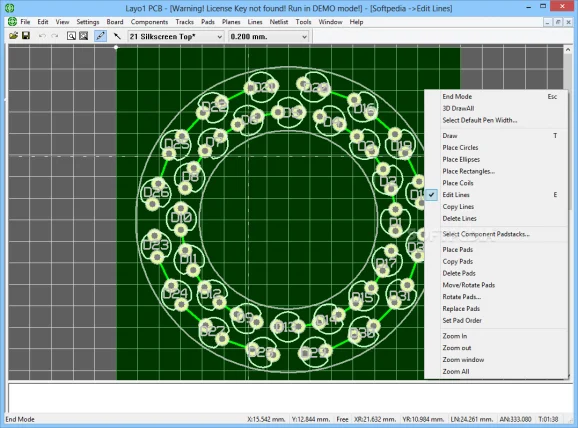

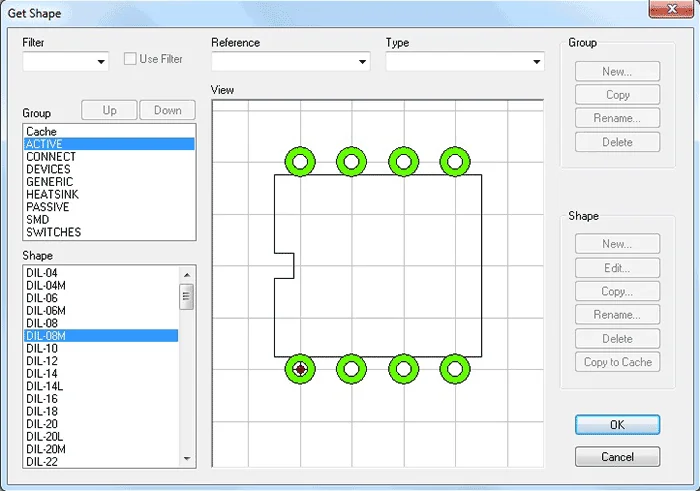

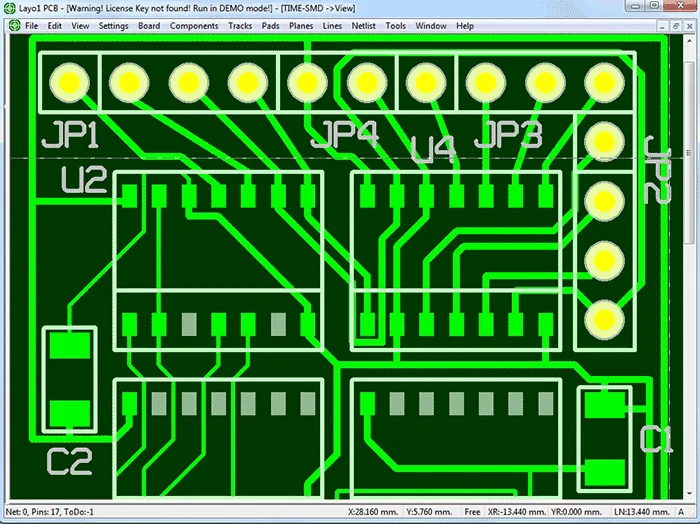

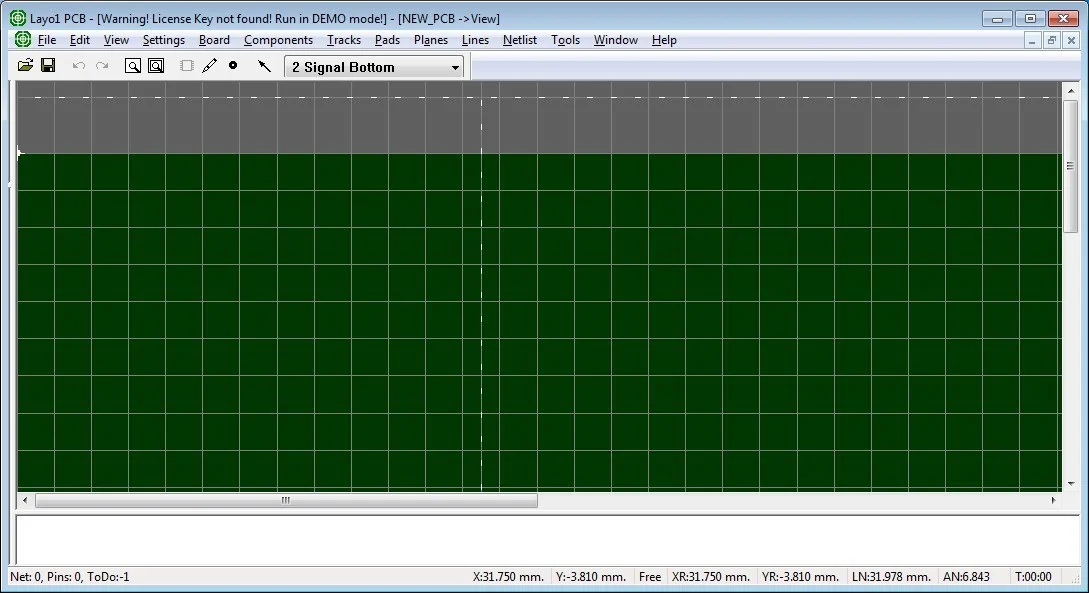

Screenshots

Features

Manual trace pattern control
Schematic netlist linking
Netlist-independent work mode
Separate mechanical graphics layer
Auto-update system
TeamViewer remote assistance
Annual subscription licensing
Custom software adjustment service
