Introduction
LogicWorks 5 is an industry-standard interactive schematic drawing and digital simulation tool designed for logic design education and practice. It supports VHDL mixed simulation, allowing schematic modules and VHDL text description modules to be designed and simulated together. It provides a complete schematic editor with real-time waveform feedback - timing waveforms and probe data update instantly when signal connections or device parameters are changed. Design files can be seamlessly migrated to the professional DesignWorks package.

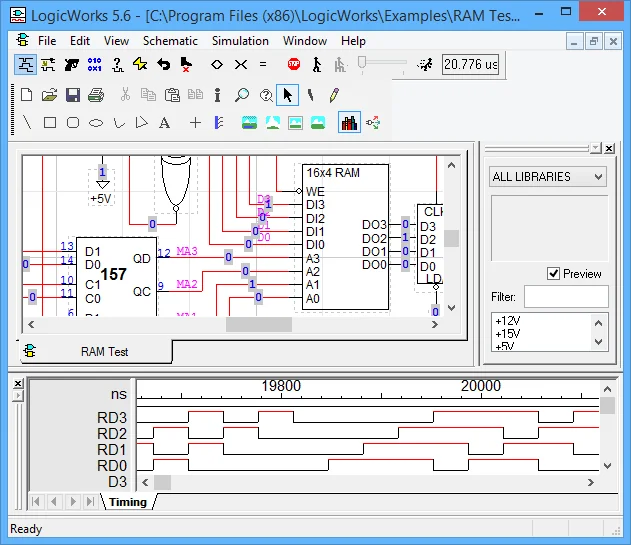

Screenshots
Features
- Interactive digital simulation
- VHDL mixed simulation
- Complete schematic editor
- Real-time waveform feedback
- Bus drawing
- Seamless DesignWorks migration
