Introduction

MCN Gerber Viewer is a PCB data file viewer and printer designed specifically for macOS systems. The tool supports Gerber-X (RS-274X) and Gerber-D (RS-274D) format files, as well as Excellon drill files. Suitable for engineers who need to quickly preview, inspect, and print PCB production files on Mac systems. Only supports Intel architecture machines, requires MAC OS X 10.6 or higher.

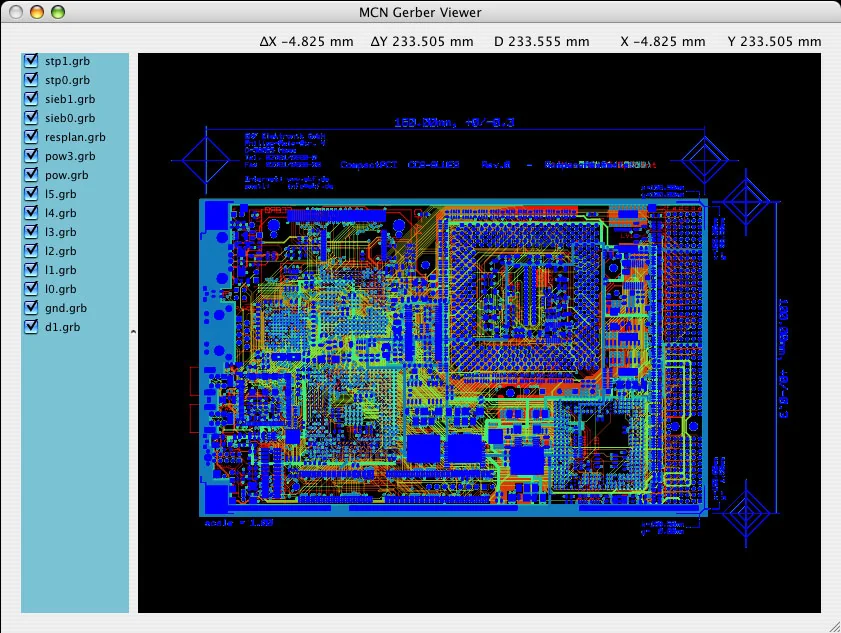

Screenshots

Features

PCB viewer designed for macOS systems
Supports Gerber-X (RS-274X) format
Supports Gerber-D (RS-274D) format
Supports Excellon drill files
File printing support
Intel architecture machines only
