Introduction

PCBX is an online EDA design platform supporting schematic (SCH) drawing and PCB layout & routing with real-time 3D preview. It provides independent editors for component symbols, pads and footprints, supports ERC electrical rule check and DRC design rule check, and one-click export of Gerber, pick-and-place coordinates, BOM and other production files. Integrated into the PCBX online design ecosystem with cloud library access and custom component ordering.

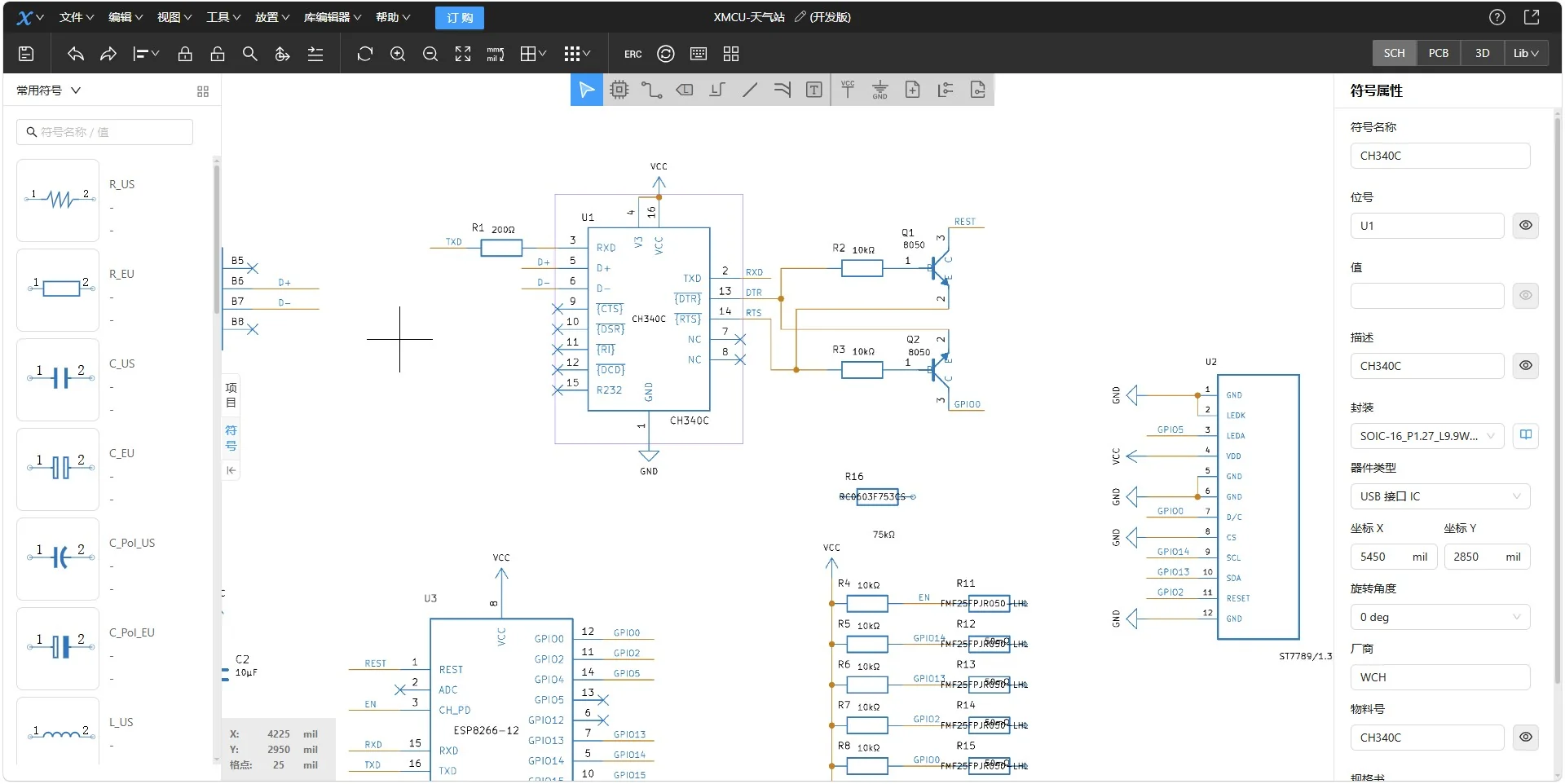

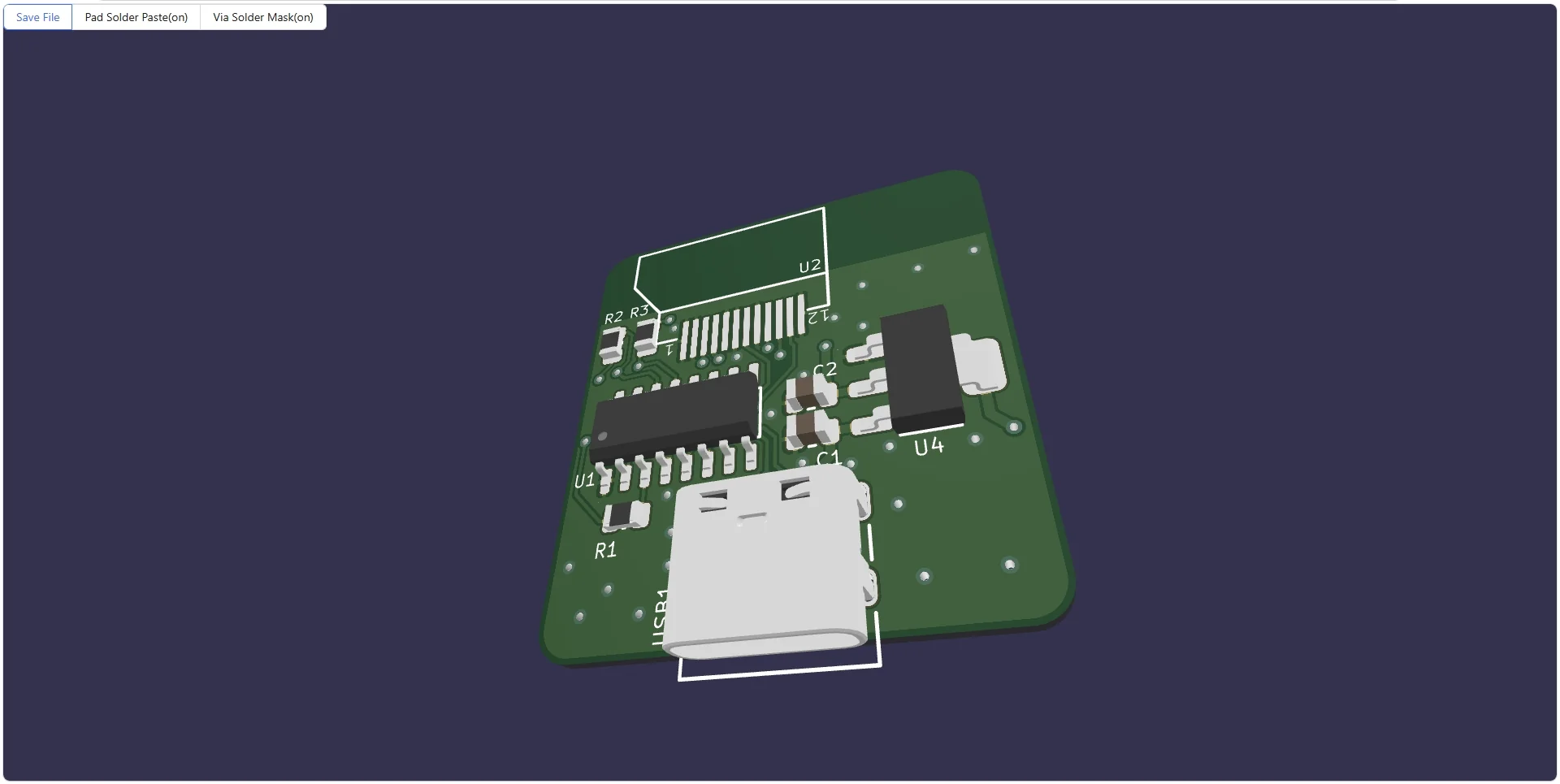

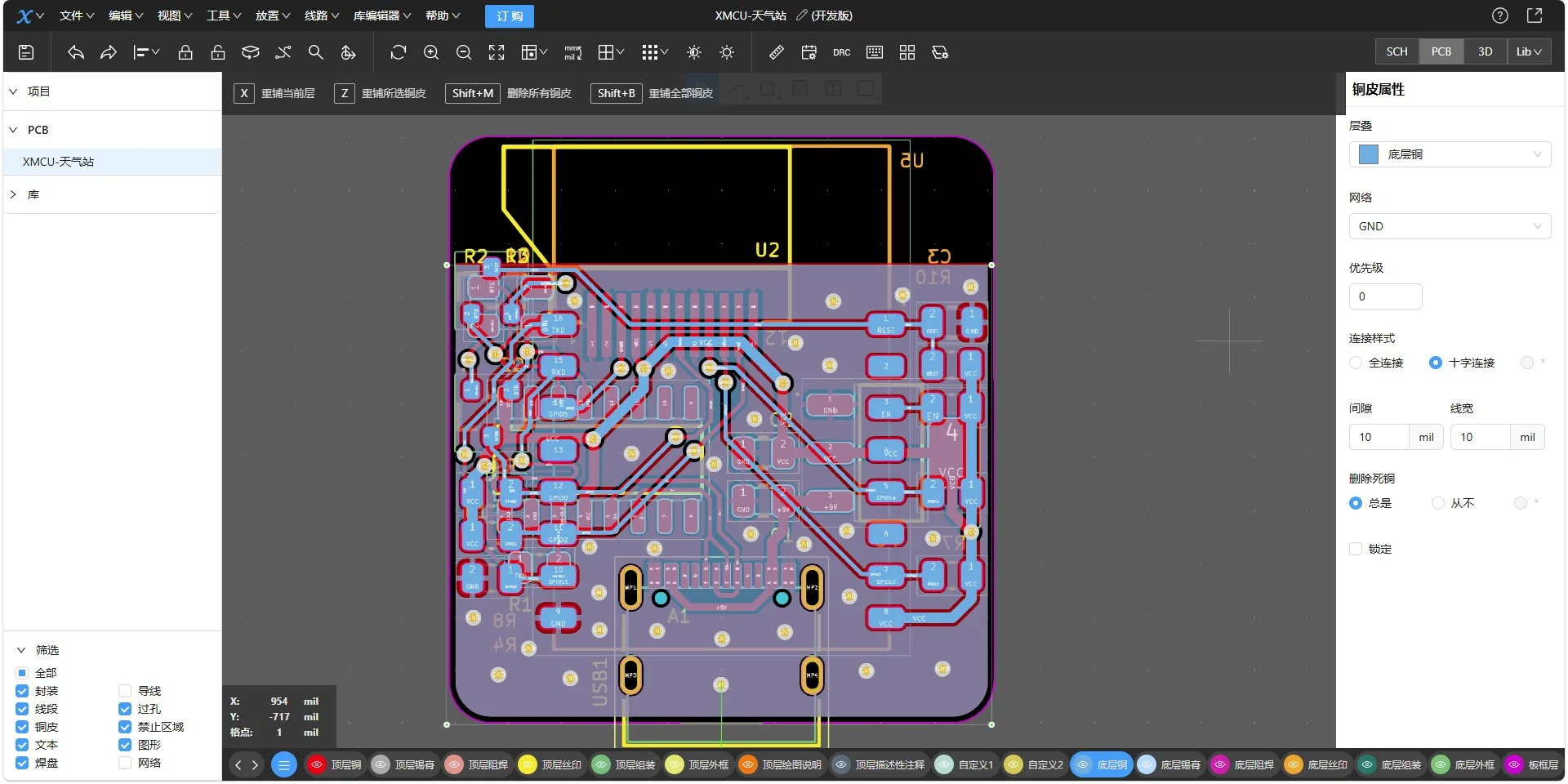

Screenshots

Features

Schematic SCH drawing
PCB layout & routing
Real-time 3D preview
ERC/DRC check
Component library management
One-click Gerber/BOM export
