Introduction

Razen is an early open-source, scriptable, collaborative PCB CAD tool designed to provide integrated schematic and layout editing capabilities. It supports forward/reverse annotation and, as an older project, was in the testing phase around 2013. This tool focuses on collaboration and primarily uses a text file format for version control.

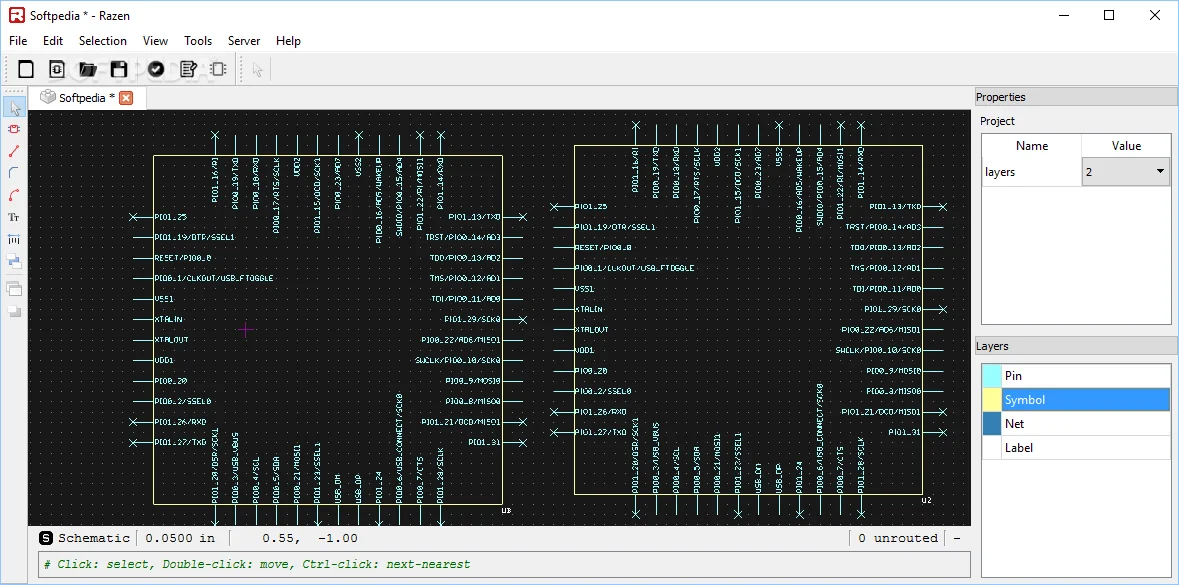

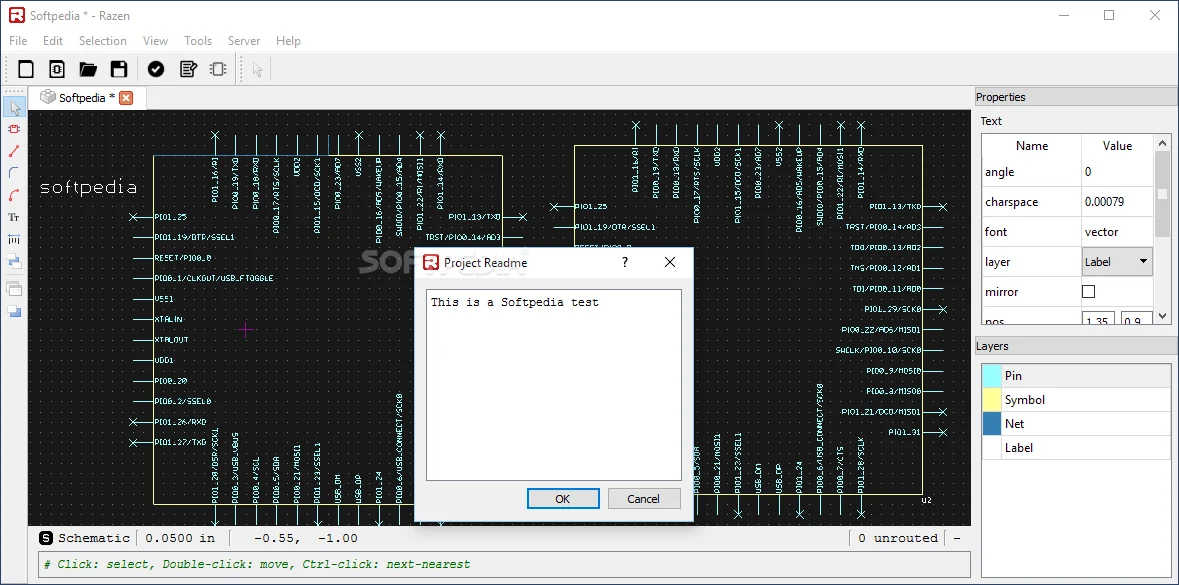

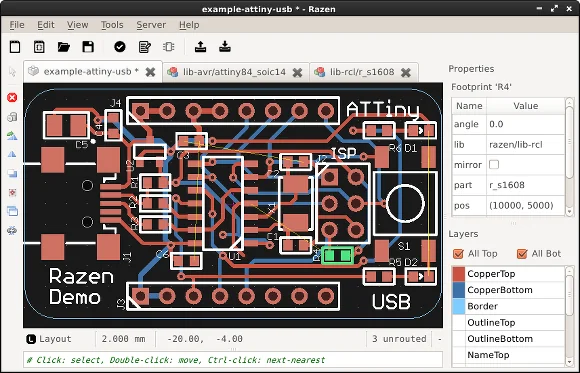

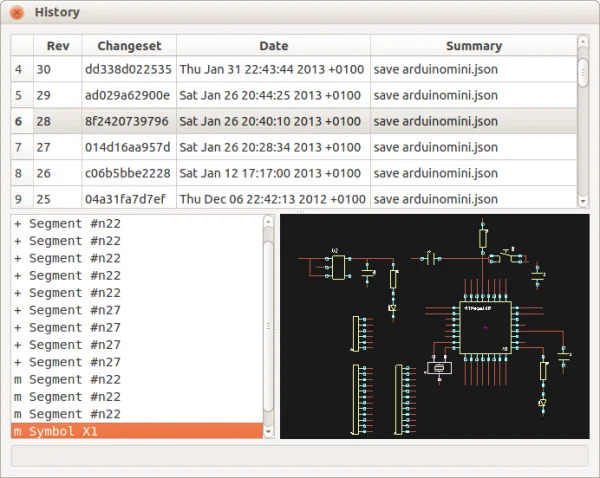

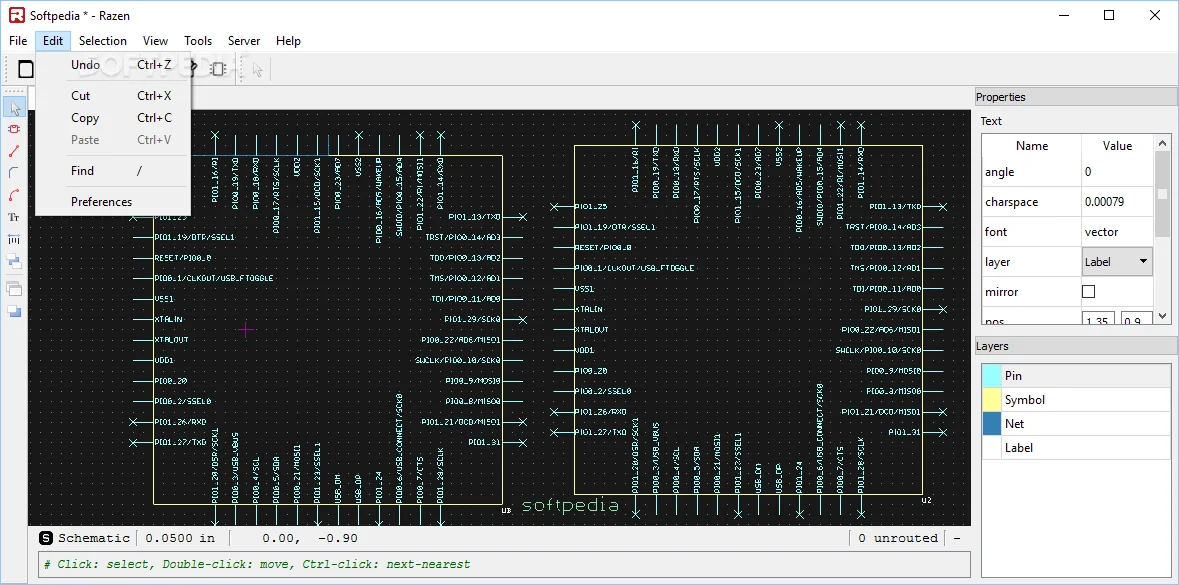

Screenshots

Features

Minimalist design

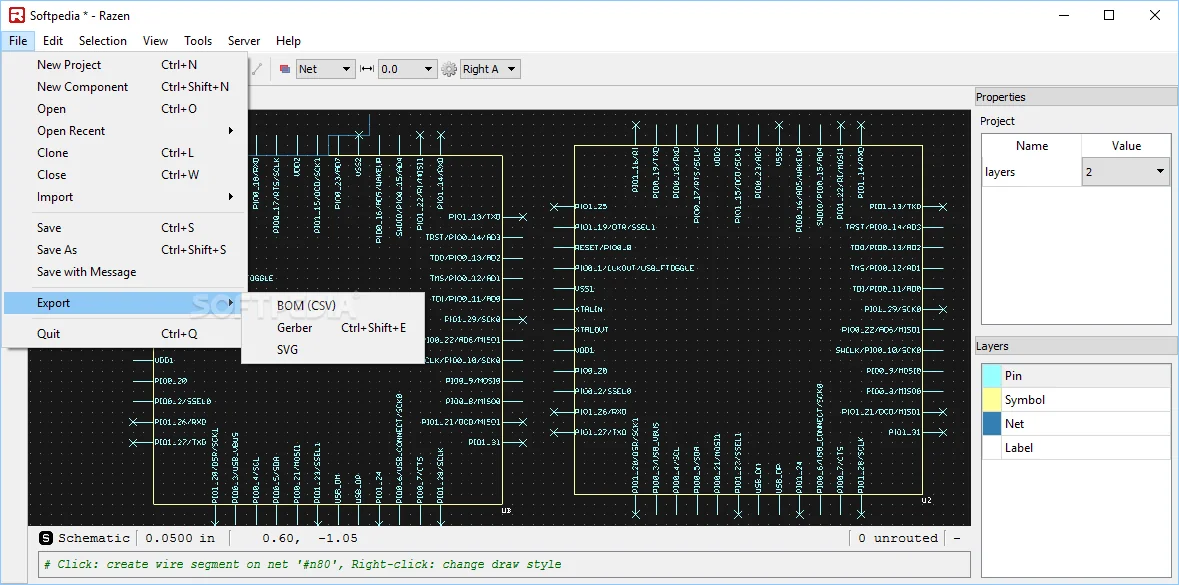

Gerber export
Cross-platform
DRC check
