Introduction

TARGET 3001 is a professional PCB design software from Ing.-Buero FRIEDRICH, Germany, with 35 years of focus on PCB Layout CAD software development. The latest version V34 supports single/double/multi-layer PCB design with built-in component database, Autoplacer, and Push&Shove routing. It supports up to 100-page schematic design with signal classes, buses, differential pairs, modular design and multi-configuration variants. Features include real-time 3D preview (STEP model import/export), built-in P(SPICE) compatible mixed-mode simulator, Molded Interconnect Devices (MID) design on 3D solids, frontpanel design and ordering, and reverse engineering. Built-in point-to-point/contour/mixed router supports external Electra high-speed routing plugin. Componiverse cloud platform provides CAD component library management and team sharing. Multi-tier licensing: Free DISCOVER (250 pins/2 layers), LIGHT (€75.90), SMART (€299, 700 pins/2 layers), PROFESSIONAL (€2,920, unlimited pins/100 layers) and more. Supports migration from EAGLE with 20% discount.

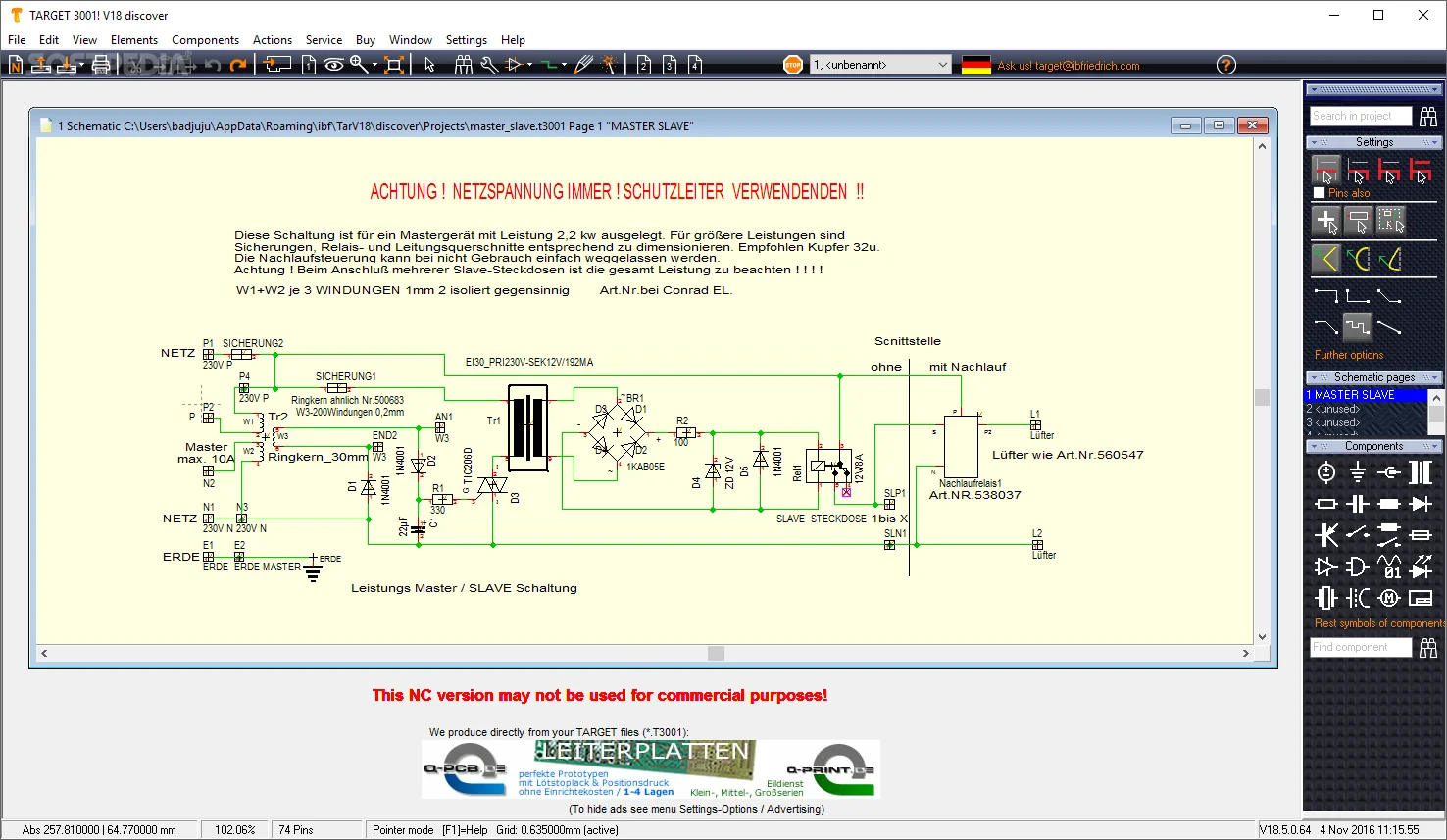

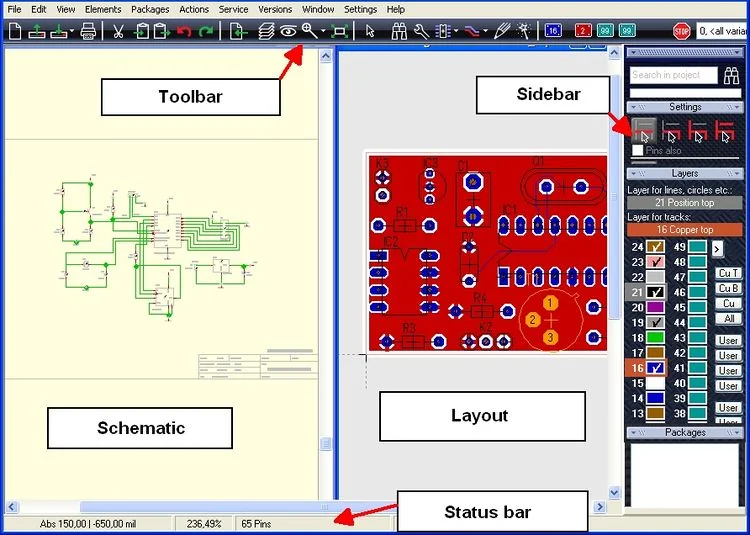

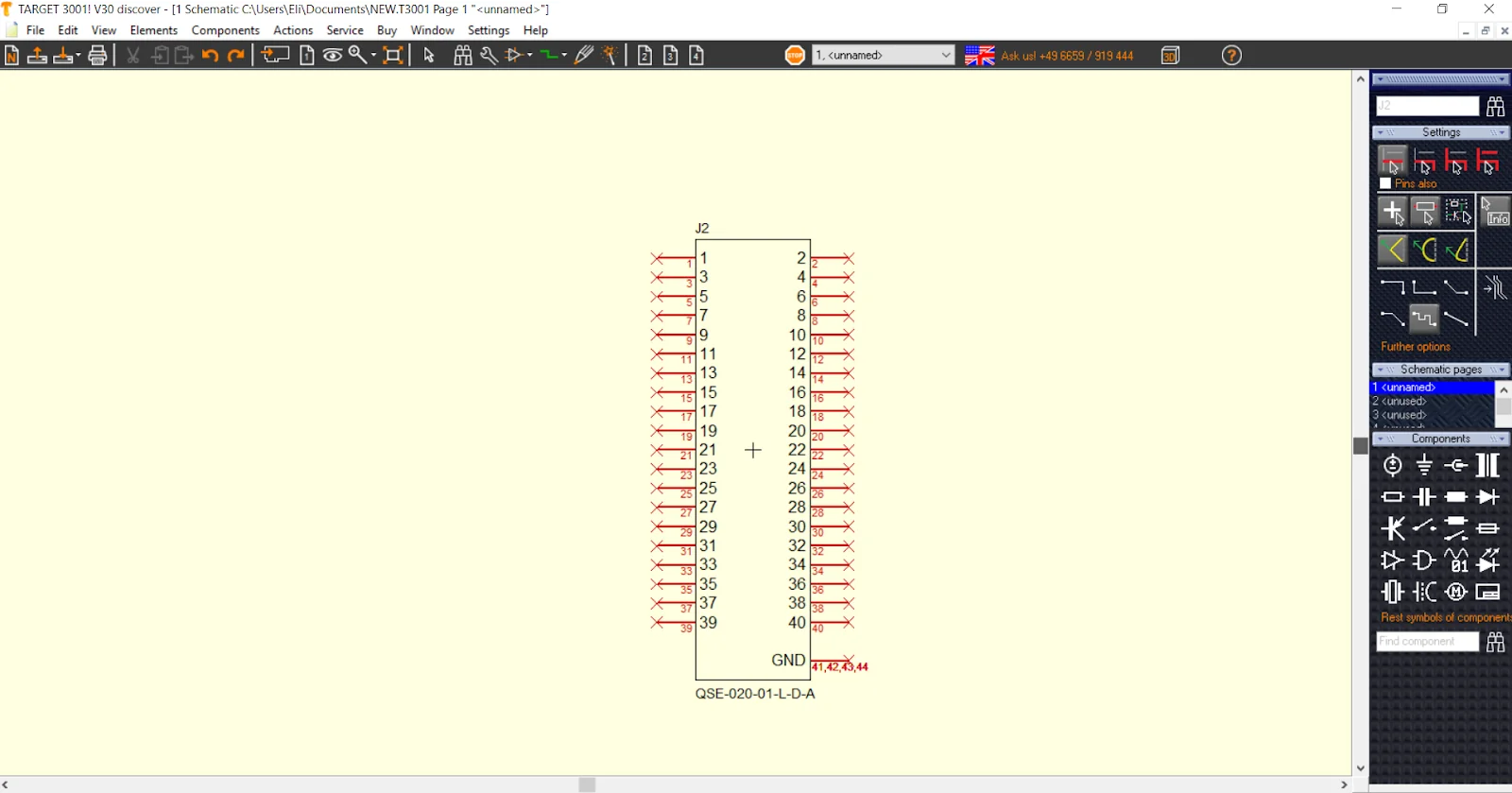

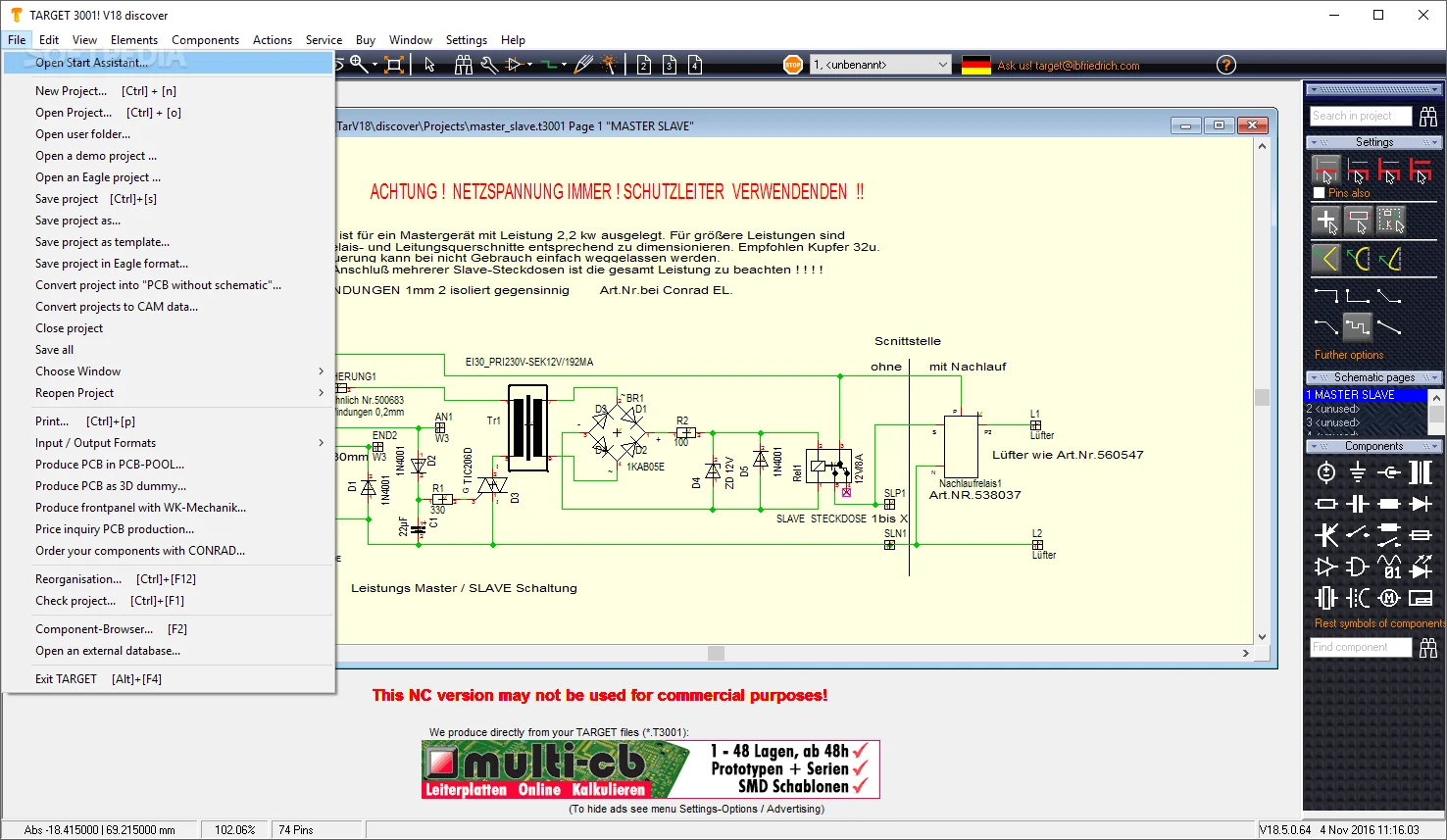

Screenshots

Features

Single/double/multi-layer PCB design
Autoplacer
Push&Shove routing
Up to 100-page schematic
Real-time 3D preview (STEP import/export)
P(SPICE) mixed-mode simulation
MID (Molded Interconnect Devices) design
Frontpanel design & ordering
Reverse engineering
Built-in router + Electra plugin
Componiverse cloud component library
Multi-tier licensing (Free to Professional)
EAGLE migration support (20% discount)
