Introduction

TinyCAD is a free and open-source schematic editor for Windows, supporting electronic circuit diagram creation, symbol library management and netlist export. It also offers a web version (TinyCAD for the Web：https://online.tinycad.net/fs/) that runs directly in the browser without installation, compatible with any operating system. The desktop version's last release was 3.00.04, and the project is now discontinued.

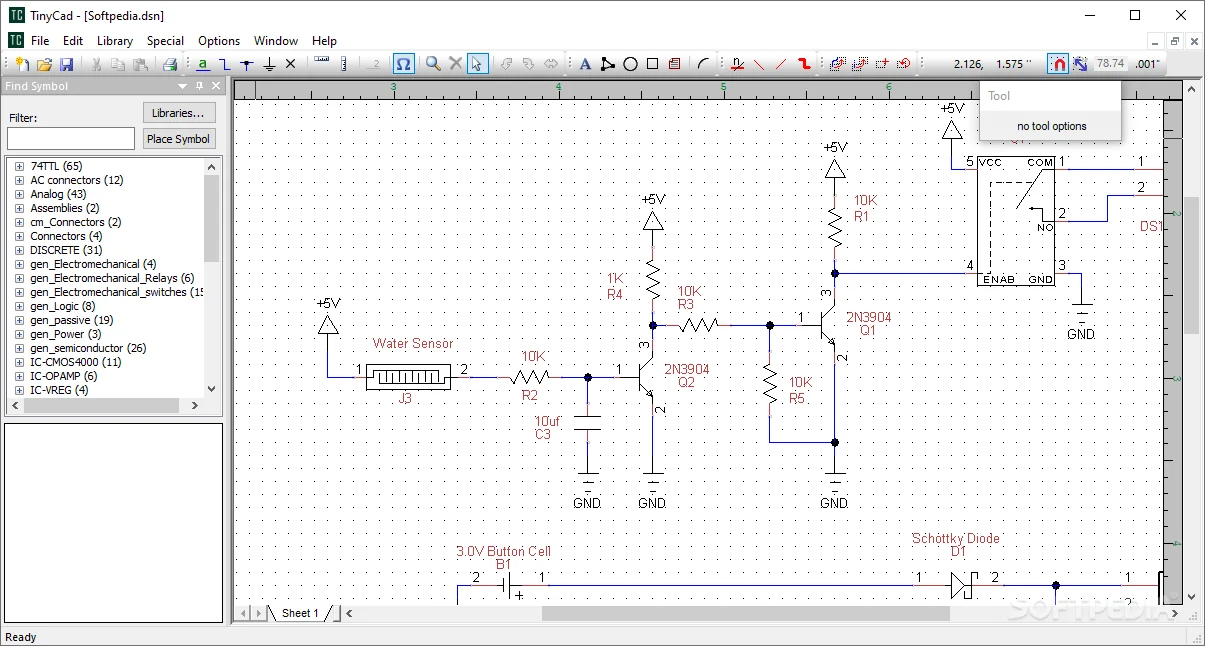

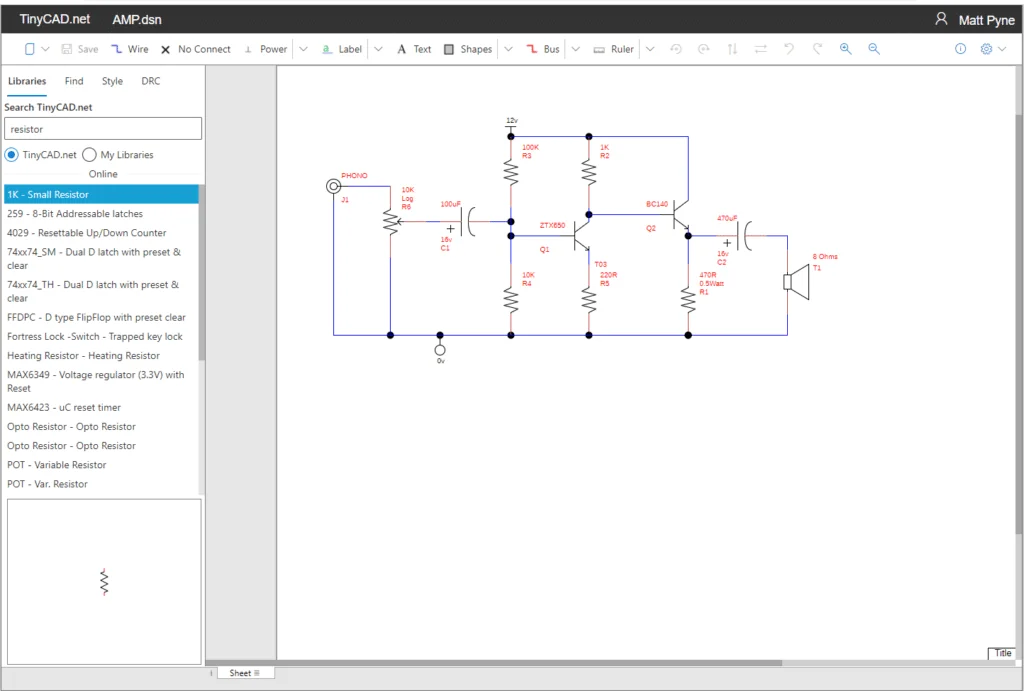

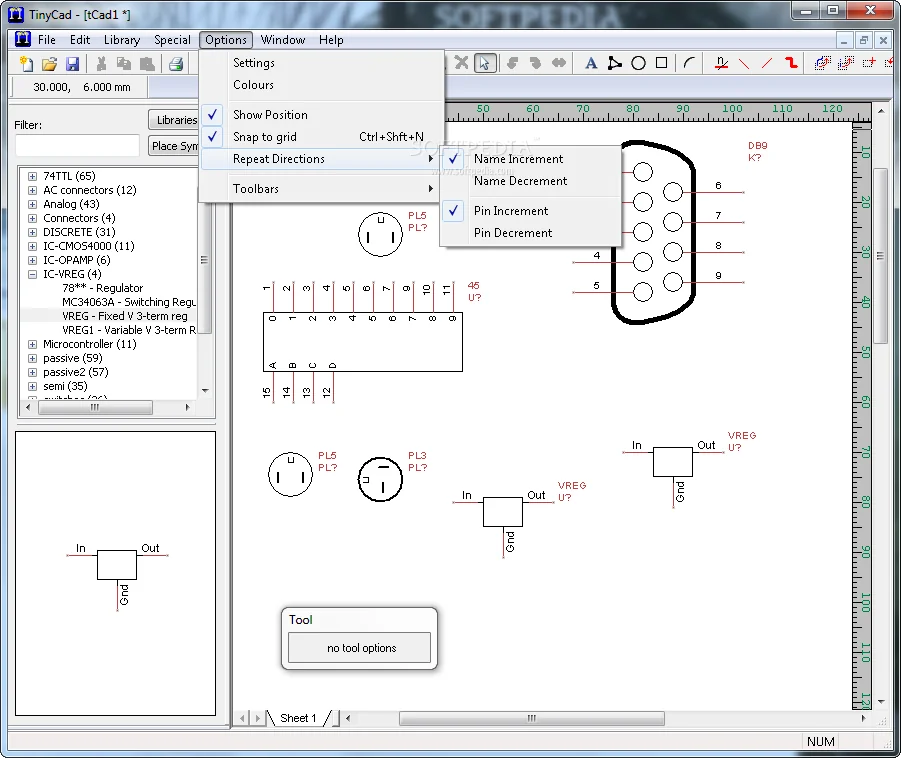

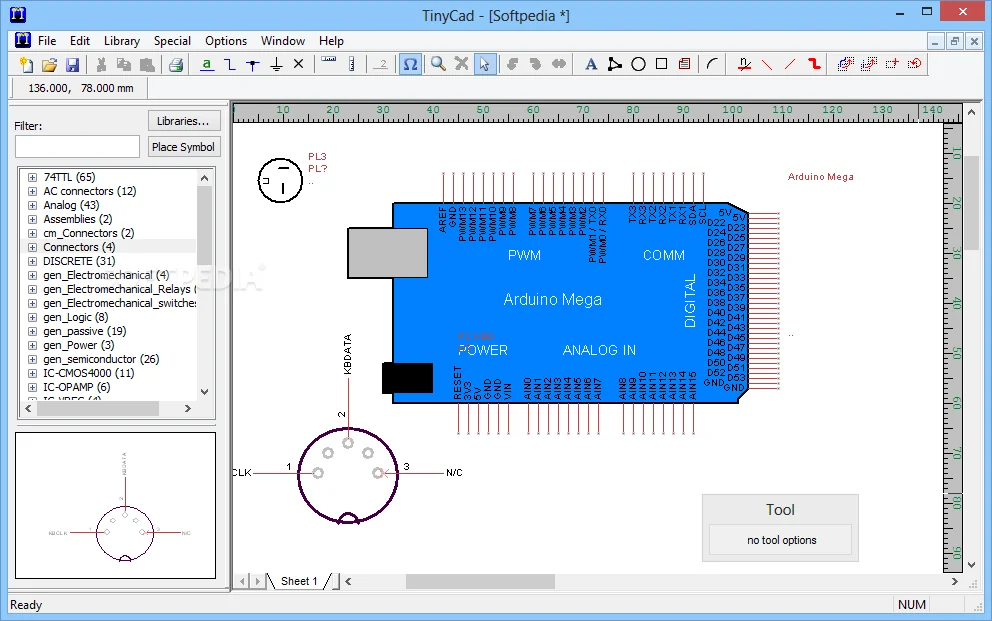

Screenshots

Features

Schematic drawing
Symbol library management
Netlist export
Online web version (no installation)
Cross-platform browser support
